Intro to HTML/CSS

Class 3

Quiz Part 1

Within your <html></html> tags, which are the two nested tags required for a website?

<html>
  <head>
  </head>
  <body>
  </body>
</html>

Quiz Part 2

What does a complete paragraph element look like?

<p>This is a paragraph</p>

Quiz Part 3

What does a complete link (anchor) element look like? Hint: needs an href.

<a href="http://google.com/">This goes to google</a>

Inline vs Block

So far, we have mostly seen "block" elements. They appear on the next line, like paragraphs.

There are also "inline" elements. They appear on the same line that they are written on.

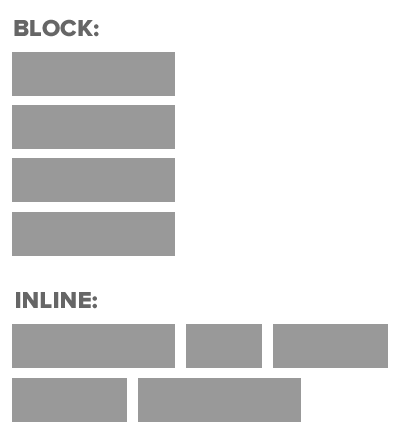

example of inline and block elements

Block & Inline Elements

  • CSS divides HTML into two types: inline and block.
  • After block elements, browsers render a new line.
  • Inline elements: img, a, br, em, strong
  • Block elements: p, h1, ul, li, almost everything else

Element: span

  • Inline element.
  • Each new span is rendered next to surrounding content, and only wraps when it reaches the edge of the containing element.
  • Can be used to apply styles to text inline so as not to break the flow of content.

span

span is used to apply a specific style inline

.highlight {
  color: teal;
}

<p>Paragraph with <span class="highlight">teal</span> text.</p>

Paragraph with teal text.

Let's Develop It

  • Wrap several words or phrases with span tags.
  • Give them a class or id.
  • Add CSS rules to change their colors.

Element: div

  • Block level element. Each new div is rendered on a new line.
  • A "division," or section, of content within an HTML page.
  • Used to group elements to style with CSS or manipulate with JS.
<div>
   <p>Content</p>
   <p>Content</p>
</div>

Styling divs with CSS

Assign id or class to change their with CSS:

<div id="header">
   <h1>Main Heading</h1>
</div>

<div class="sub-content">
   <p>Some more content</p>
</div>

Styling divs: Example

.special-quote {
  text-align: right;
  color: purple;
  text-decoration:underline;
}

<div class="special-quote">
  <p>Lorem ipsum dolor sit amet, consectetur adipisicing elit</p>
  <p>Sed do eiusmod tempor incididunt ut labore et dolore.</p>
</div>
<p>Magna aliqua. Ut enim ad minim veniam.</p>
<p>Quis nostrud exercitation ullamco.</p>

Lorem ipsum dolor sit amet, consectetur adipisicing elit

Sed do eiusmod tempor incididunt ut labore et dolore.

Magna aliqua. Ut enim ad minim veniam.

Quis nostrud exercitation ullamco.

Sample Code: div Elements

A page divided into divs might look like this:

<!doctype html>
<html>
  <head>
    <title>Sample Page</title>
  </head>
  <body>
    <div id="header">
      <h1>My Page Title</h1>
    </div>
    <div id="content">
      <p>The main content</p>
    </div>
    <div id="sidebar">
      <p>Some stuff in a sidebar</p>
    </div>
    <div id="footer">
      <p>Copyright me</p>
    </div>
  </body>
</html>

Let's Develop It

  • Use divs to separate content into different sections on your page - create a header, content area, sidebar, and a footer.
  • Give them a class or id.
  • Add CSS rules to change their color.

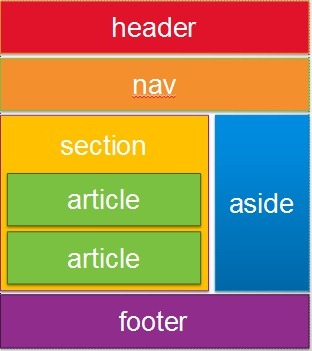

HTML5

HTML5 offers new elements for better document structure and semantics.

Some of the most commonly used new tags include:

<header></header>
<nav></nav>
<main></main>
<section></section>
<article></article>
<aside></aside>
<footer></footer>

Full list on Mozilla Developer Network (MDN).

Sample Code: HTML5

A page divided using HTML 5 elements might look like this:

<!doctype html>
<html>
  <head>
    <title>Sample Page</title>
  </head>
  <body>
    <header>
      <h1>My Page Title</h1>
    </header>
    <main>
      <p>The main content</p>
    </main>
    <aside>
      <p>Some stuff in a sidebar</p>
    </aside>
    <footer>
      <p>Copyright me</p>
    </footer>
  </body>
</html>

Let's Develop It

Replace some of your div elements with semantic HTML5 elements.

Property: Width

Set the width of a block-level element or img.

Won't work for other inline elements (unless you change their display property).

Accepts a variety of length units:

#sidebar {
  width: 200px;
  /* or */
  width: 20em; /* relative to font size */
  /* or */
  width: 20%; /* relative to containing element width */
  /* or */
  width: 20vw; /* relative to window: 1vw = 1% window width */
  /* and more (see link below) */
}

More on CSS Length Units

Property: Height

Works like width, with all the same units:

p.alert {
  height: 50px;
  /* or */
  height: 5em; /* relative to font size */
  /* or */
  height: 10%; /* containing element MUST have specified height */
  /* or */
  height: 10vh; /* relative to window: 1vh = 1% window height */
}

Min & Max

Set upper or lower limits to the size of elements.

  • No element can be smaller than its min-width or min-height.
  • No element can be larger than its max-width or max-height.
img {
  max-width: 100%; /* may be no wider than the containing element */
}

#sidebar {
  width: 30%; /* will be 30% of the width of the containing element */
  min-width: 200px; /* but will stop shrinking with its parent at 200px */
}

Let's develop it!

  • Add a width & height to some img & div elements.
  • Use ids or classes to target specific elements with CSS.
  • Set a rule for all img tags so they can never outsize their parents.

Box Model

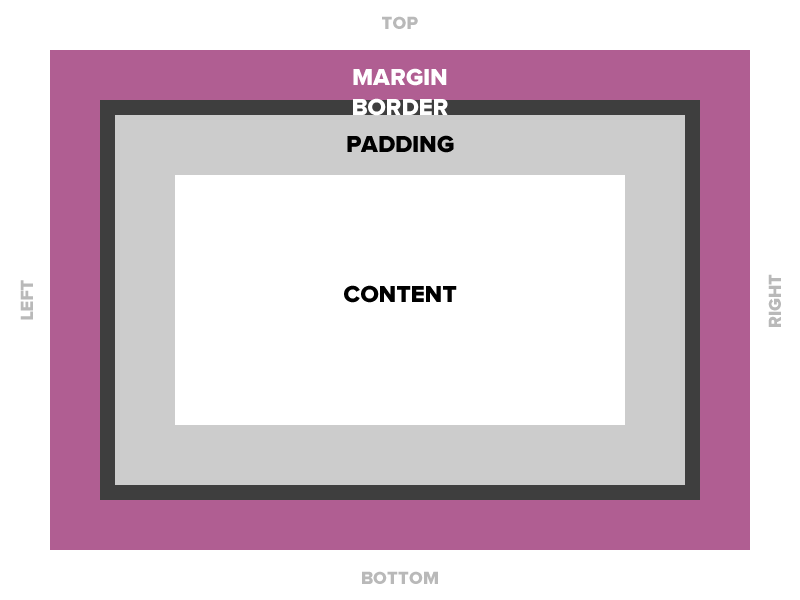

Graphic illustrating box model

Padding

Space between the border and the content

Graphic illustrating box model, padding highlighted

Padding

Four values

padding: top right bottom left;

Two values

padding: top/bottom right/left;

One value

padding: all;

*background properties apply to padding as well as content.

Padding

15 pixels on all sides

padding: 15px;

10 pixels on top only

padding-top: 10px;

10 on top, 5 on right, 3 on bottom, 5 on left

padding: 10px 5px 3px 5px;

*Padding adds to the total size of the box, unless box-sizing: border box is applied.

Example: Padding

padding: 10px 20px 30px 40px;

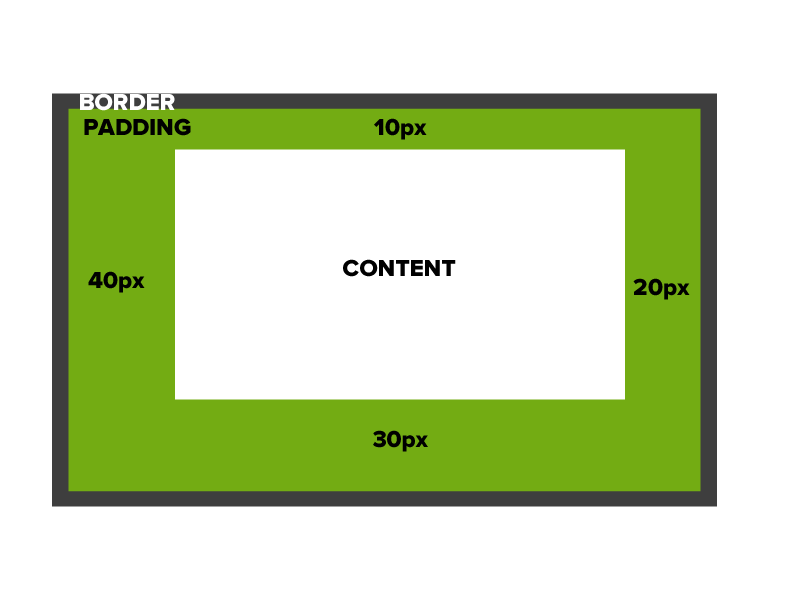

Graphic illustrating box model, with uneven padding

Border

The edge around the box.

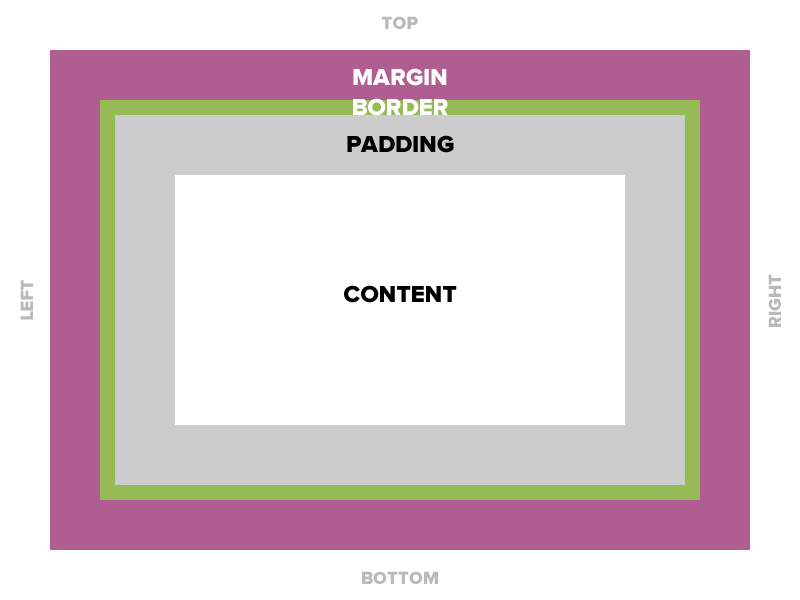

Graphic illustrating box model, border highlighted

Border

Borders are specified as "thickness, style, color."

A solid red border

border: 1px solid #ff0000;

A thick dotted black top border

border-top: 4px dotted #000000;

Two different border styles

border-top: 1px solid #ff0000;
border-bottom: 4px dotted #000000;

*Like padding, border adds to the total size of the box.

Border - Other Properties

You can specify each property separately, or all three together.

border-width: 10px;
border-style: dashed;
border-color: #666666;

border: 10px dashed #666666;

Margin

The transparent area around the box that separates it from other elements.

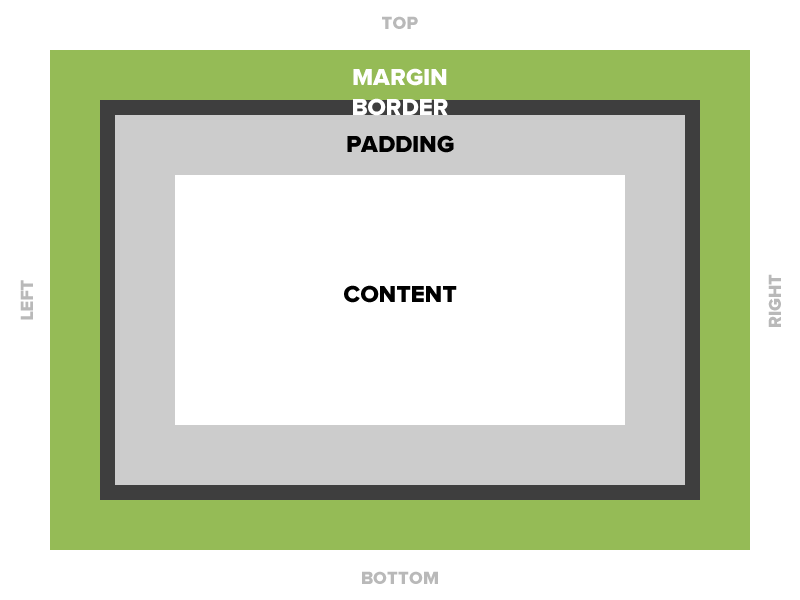

Graphic illustrating box model, margin highlighted

Margin

15 pixels on all sides

margin: 15px;

10 on top, 5 on right, 3 on bottom, 5 on left

margin: 10px 5px 3px 5px;

10 pixels on top

margin-top: 10px;

Auto Margin

If a margin is set to auto on a box that has width, it will take up as much space as possible.

Centered:

margin: auto;
width: 300px;

Flush right:

margin-left: auto;
margin-right: 5px;
width: 300px;

Let's Develop it!

  • Add some padding, borders, and margins to your divs.
  • Center your entire document in the browser.

Questions?
