Introduction to Web Accessibility and Inclusive Design

Agenda

• 6:10 - What Is Accessibility & Inclusive Design?
• 6:40 - Assistive Technology Demo (Interactive)
• 7:00 - How Do I Build and Evaluate Inclusive Websites?
• 7:40 - BREAK
• 7:45 - How Do I Improve My Code for Accessibility?
• 8:45 - What Can I Do With My New Knowledge?

Define Web Accessibility

“Web accessibility means that people with disabilities can perceive, understand, navigate and interact with the Web, and that they can contribute to the Web.”

Define Inclusive Design

“Inclusive Design is design that considers the full range of human diversity with respect to ability, language, culture, gender, age and other forms of human difference.”

“The power of the Web is in its universality. Access by everyone regardless of disability is an essential aspect”

Using An Inclusive Strategy When Building Products

Accessibility In The Workplace

It's The Law

Accessibility In The Workplace

The Americans With Disabilities Act (ADA) requires that individuals with disabilities must have access to online tools.

Section 508 requires that all federal government online resources be accessible (includes organizations that receive federal funding)

The Web Content Accessibility Guidelines (WCAG) 2.0 covers a wide range of recommendations for making Web content more accessible.

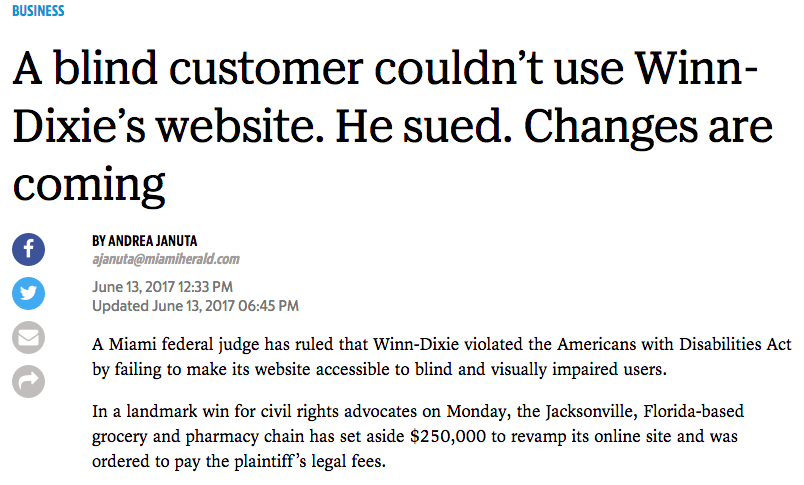

Accessibility In The Workplace

Lawsuits Filed Within The Last 12 months:

Nike

Pandora

Hershey

Lord & Taylor

Burger King

Glossier

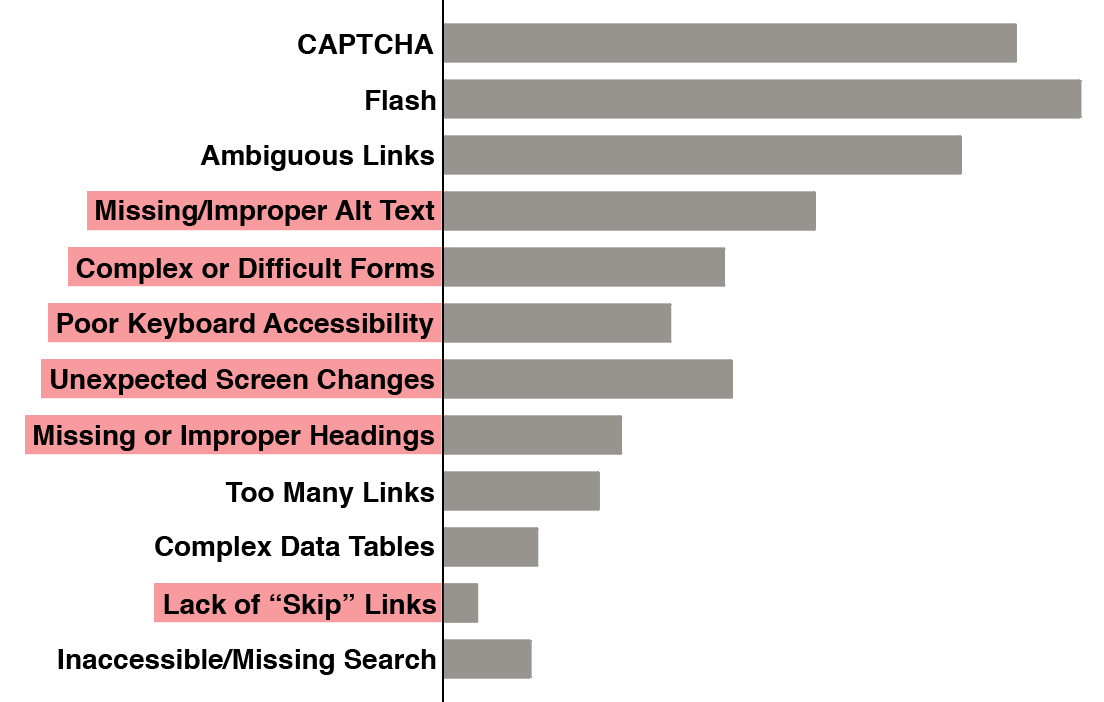

What are the common problems?

Source: WebAIM Screen Reader Survey, February 2014

The Power of Accessible Technology

Understand more
about this group of users and
the Diversity of User Abilities

Nearly 1 in 5 People
Have a Disability in the U.S.
Source

Four Major
Categories of Accessibility

Visual

This can mean non-sighted users, users with low vision, users with obstructed vision, or older users.

2% of all Americans are blind or have low vision;
6% of Americans ages 65+. ( Source)

About 4% of the population has color-blindness. ( Source)

• Screen readers
• Braille output
• Text zooming
• Color contrast controls
• Keyboard navigation

Auditory

15% of American adults aged 18+ report some trouble hearing (Source). This can range from mild/moderate hearing loss ("hard of hearing") to deafness.

• Video and Audio Captions
• Visual alternatives to audio alerts

Physical

Users could have weak or limited muscle control,
lack of sensation, missing limbs, joint disorders or pain that prevents movement

• Keyboard Navigation
• Eye trackers
• Assistive Switches (Joystick, Buttons)

Cognitive, Learning and Neurological

Users could have neurological, behavioral or mental health disorders that may impact how well they hear, move, see, speak, and understand information.

• Spelling and Grammar Checkers
• Text-To-Speech
• Voice Browser
• Clear navigation, descriptive titles, easy-to-read text

More on The Diversity of Web Users

What is
Assistive Technology?

Provides services beyond those offered
by the browser to facilitate user interaction
with web content by people with disabilities

How @blindflimcritic Uses Instragram with a Screen Reader

Ready to try it for yourself?

Activate TalkBack
Screen Reader - Android

Settings > Accessibility > TalkBack

Getting started with TalkBack
(Google Support Docs)

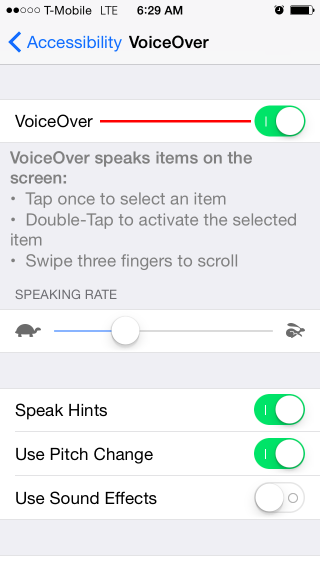

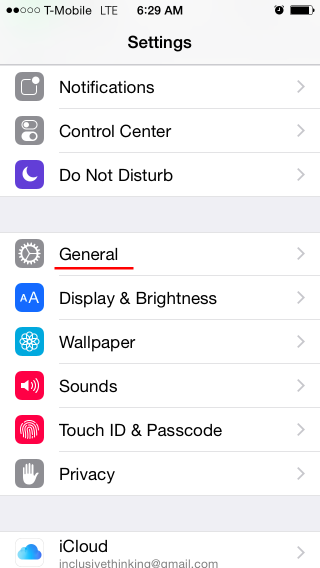

Activate VoiceOver
Screen Reader - OSX

Activate VoiceOver from System Preferences > Accessibility > Enable VoiceOver checkbox

Screen Readers for Windows

• JAWS
• NVDA (Open Source)
• ChromeVox (Chrome Extension)

How Do I Build Inclusive and Accessible Websites?

Activity: Manually Test A Website

• Take 10 minutes
• Browse the page using a screen reader
• And keyboard navigation (TAB, SHIFT-TAB, ARROW KEYS)
• Keep in mind: POUR

What issues did you notice?

What if I missed something?

• Accessibility Evaluation Tools are very good at finding issues with your code.
• However, they are not very good at evaluating user experience and interactions.
• Use accesibilty checkers in addition to manual testing.

Browser Plugins for
Accessibility Testing

The WAVE browser extension from WebAIM allows you to evaluate web content for accessibility issues directly within the browser (Chrome, FireFox)

Once installed a "W" icon will appear in the browser toolbar. Press the icon to run an audit of the page.

Browser Plugins for
Accessibility Testing

aXe is an open-source rules library for accessibility testing that allows you to evaluate the current state of a page without reloading its contents. (Chrome, FireFox)

Chrome Dev Tools
for Accessibility

Lighthouse is built into the Chrome DevTools and can perform audits for performance, accessibility, progressive web apps, and more.

Javascript Module for
Local Testing

tota11y is an open source accessibility visualization toolkit from Khan Academy which can be added to your codebase and run locally during development.

Activity:
Perform an accessibilty audit

• Take 10 minutes
• Download a browser plugin or use Chrome DevTools.
• Run the audit on the website you already manually tested.
• Review the results to find additional issues.

What new issues did the accessibility checkers catch?

Accessibility Quick Wins

• Set the language attribute
• Have a descriptive title
• Appropriate alt text for images
• Validate your code
• Check color contrast

HTML language attribute

Specifying the language of the page tells the screen reader how to pronounce the words.

If you don't specify, the screen reader will use the user's default language, meaning potential mispronunciations.

          <html lang="en">


HTML language tags (video)

Include a descriptive title

It's surprisingly easy to forget to include a title tag in the head of your webpage.

          <head>
            <title>The Funion - Front Page</title>
          </head>


Make sure it accurately and concisely describes the content of the page. This way it's easier for users to find your website when multiple tabs or windows are open.

Other places for descriptive text

While you're at it, check the following elements to make sure their text or labels accurately describe their function out of context.

• links
• headers
• buttons

Alt Tags Best Practices

• The alt attribute specifies alternative text for an image that convey the same thing as the image.
• Alt tags are also important for Search Engine Optimization (SEO) and when your images don't load.
• If an image is purely decorative, set an empty alt tag and screen readers will ignore that element.
• Logos are not just decorative, so include the name represented by the logo.
• Avoid redundant phrases like "image of".

Alt Tag Examples

<img src="pup.jpg"/> <-- No alt-tag; Inaccessible -->
<img src="pup.jpg" alt=""/> <-- Decorative, ignored by screen readers -->
<img src="pup.jpg" alt="puppy"/> <-- Better -->
<img src="pup.jpg" alt="Dalmation puppy playing fetch"/> <-- Best -->


Valid code is accessible code!

Accessibility checkers can catch invalid HTML like:

• id attributes must be unique.
• If you're using tables, include table headers <th>
• Wrap list items in ordered or unordered list tags.
  <ul><li></li></ul>

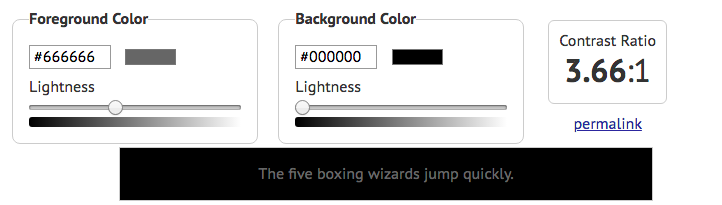

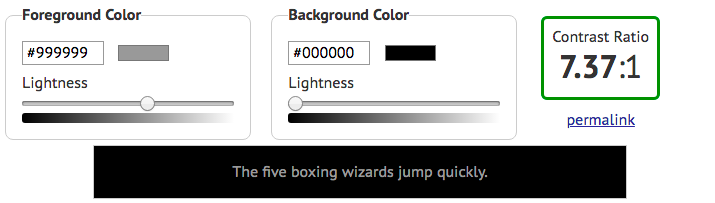

Color Contrast

Your pages need sufficient contrast between foreground (text or graphics) and the background.

4.5:1 contrast ratio for for normal text

3:1 constrast ratio for large text (greater than 18pt)

WebAIM Color Contrast Checker

ColorSafe.co - Color Contrast Palette Generator

Color Contrast

Activity: Quick Wins

What are some quick fixes we can make to this website to resolve some of the issues found by the accessibility checker?

• Set the language attribute
• Have a descriptive title
• Appropriate alt text for images
• Validate your code
• Check color contrast

Semantic HTML

Semantic HTML Elements communicate meaning, content and structure to the browser and the developer.

            <body>
              <h1>Page Header</h1>
              <h2>I am a subhead.</h2>
              <button>Click me!</button>
            </body>


Non-Semantic HTML

Non-semantic HTML Elements communicate less meaning to the browser, screen reader or other assistive device.

            <div>
              <div class = "header">Page Header</div>
              <span class = "subheading">I am a subhead.</span>
              <span class = "my-button">Click me!</span>
            </div>


Accessibility API

Assistive devices have an accessibility API as part of their operating system. The API translates a web page into something that can be interpreted by screen readers.

Screen readers can easily read and interpret semantic HTML elements.

Non-semantic HTML elements convey no information to the accessibility API.

Semantic Landmarks

• Semantic HTML can help you logically order your page.
• Using landmarks will also help your screen reader users navigate your page more quickly.
• HTML5 includes semantic elements such as: nav, main, aside, footer.
• For older broswers that do not support HTML you can assign roles to your divs:
  <div role="nav" class="navbar">
• Learn more about landmarks

Appropriate Headings

• Descriptive headings can help users better navigate your page.
• Make sure you use leveled headings in the right order.
• Use CSS to format your headings rather than using a lower level heading just for smaller text.
• If you use headings and landmarks appropriately, you will not need to add a "skip navigation link." But here's a good tutorial, if you're interested.

Navigable Headings

Form Labels

Ways to include labels with your form inputs:

1. Wrap the input element in a label tag

  <label>First name: <input type="text" name="firstname"></label>


2. Use label for to associate the label text with the input using it's unique id.

  <label for="firstname">First name:</label>
  <input type="text" name="firstname" id="firstname">


Advanced Form Fu

• Hiding labels - Caution: using CSS like visibility: hidden and display: none will also hide that text from screen readers.
• Using ARIA labels: coming up next!
• Accessible form validation and instructions

Activity: Semantic Refactor

How can you refactor the code to include more semantic HTML elements?

• Replace non-semantic divs with native HTML elements.
• Use HTML5 landmarks or roles.
• Order headings appropriately.
• Label form elements.

Going Deeper: Advanced Accessibility Concepts

Accessible Rich Internet Applications (ARIA)

If you are using non-semantic HTML to structure your webpage, ARIA can modify existing element semantics, or add semantics where no native semantics exist. ( Source)

In other words, ARIA helps screen readers decipher Web content.

Top 5 ARIA Attributes To Know

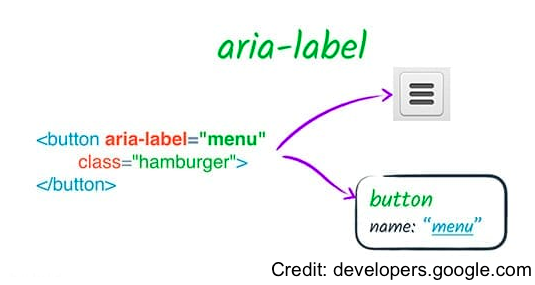

1. aria-label

Source

Top 5 ARIA Attributes To Know

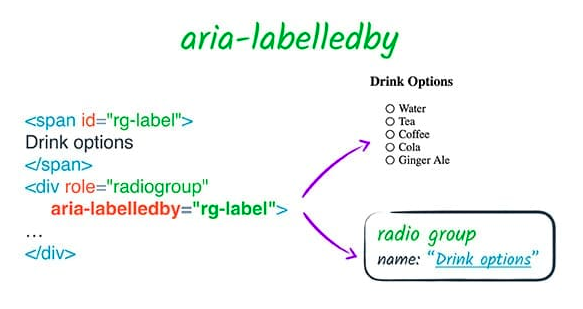

2. aria-labelledby

Source

Top 5 ARIA Attributes To Know

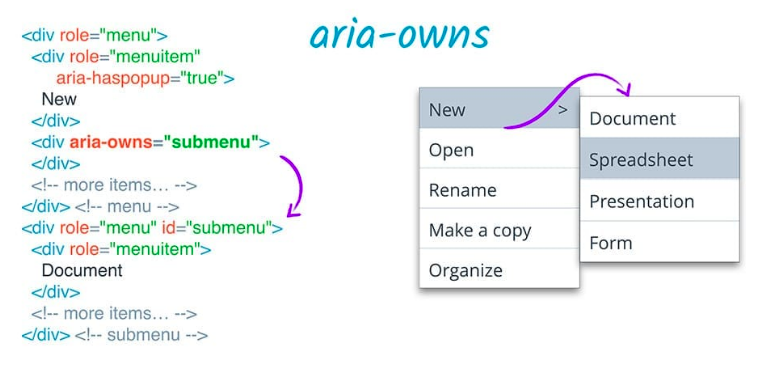

3. aria-owns

Source

Top 5 ARIA Attributes To Know

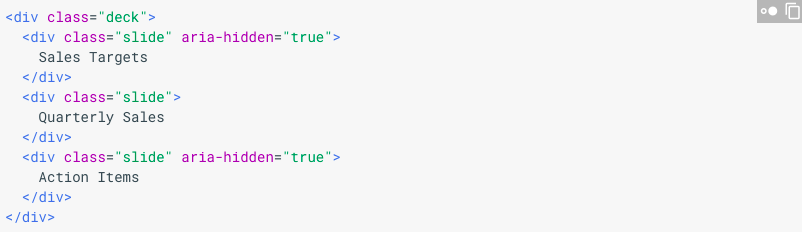

4. aria-hidden

Source

Top 5 ARIA Attributes To Know

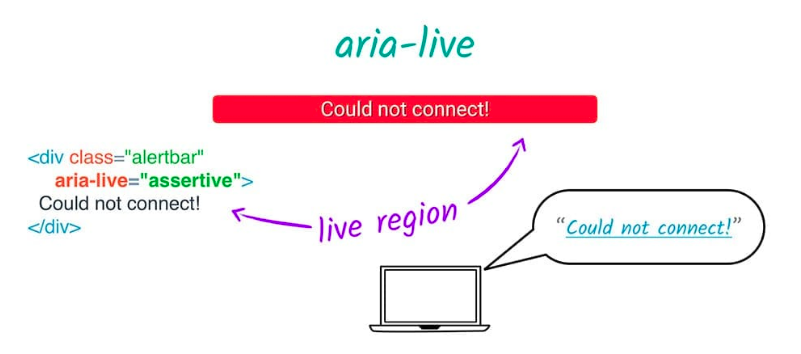

5. aria-live

Source

Keyboard Navigation

Keyboard accessibility is one of the most important aspects of web accessibility.

Many users with motor disabilities rely on a keyboard.

Define Focus

When you tab through the elements on your page, they are usually highlighted subtly to show that the focus is on that element.

You can modify this styling but do not remove it!

Define Tab Order

The order in which elements receive focus should be logical.

• Interactive elements like links, buttons, and form inputs are natively tab accessible.
• Headings and text usually do not need to be tab accessible, so do not add tabindex to page contents.
• Caution! CSS can override the order they show up in the code (or DOM).

Appropriate use of tabindex

• The tabindex attribute can also be used to change the tab order.
• If you are creating custom interactive components, you may need to set tabindex=0.
• Setting tabindex="-1" removes the element from the tab order, but allows you to programmatically manage it's focus with Javascript.
• Setting a tabindex greater than 0 will move that element up in the tab order. This is not recommended.
• Learn more about tab index and managing focus

JavaScript Complications:
Modals and More

• If you are using modals, ensure they are fully screen reader accessible (Example)
• If you are relying on mouse-specific events (mouseover, mouseout, dblclick) double up the functionality with non-mouse-specific events
• Make sure to inform your users when content has dynamically changed!
• Test your JavaScript code on many different browsers and assistive devices

Activity: Keyboard Nagivation

To wrap things up, find places where you can improve the tab order and focus.

What else could you improve?

Accessibility and Inclusive Design

Inclusive Design In Product Planning/Mapping

Be A Leader: Teach Co-Workers About Accessibility

Accessible Code Is Better Code

Next Steps: Continue Your Accessibility Journey

• Free Web Accessibility Class By Google on Udacity
• June 9-10 STEM Accessibility Hackathon in Sunnyvale, CA
• Bay Area Accessibility And Inclusive Design Meetup Group
• Accessibility Camp Bay Area

Thank You!

Please Take The Class Survey
